FM Broadband Dipole Antenna

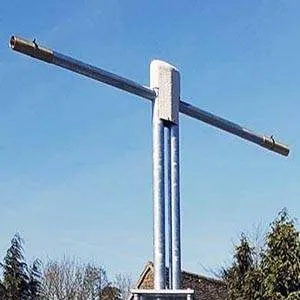

ADB-FM3 FM Broadband Dipole Antenna.

The vertically polarized FM Broadband Dipole Antenna consists of a Balun fed vertical dipole. It also includes a power divider and heliax coaxial feed lines as standard. The antenna construction materials include stainless steel and have a brass inner conductor. For many years of dependable service, all brackets and hardware will consist of hot-dipped, galvanized steel.

The ADB-FM3 FM antenna leaves the factory fully assembled and tested. The test tower will be of an electrically similar tower to that planned by the customer. We will ensure the correct impedance and a low VSWR.

FM Broadband Dipole Antenna Specification

  • Power Rating ~3kW per bay/element
  • Vertical Polarization
  • VSWR 1.2:1
  • Excellent Diplexing Properties
  • Beam Tilt & Null Fill available
  • Custom Directional Patterns Available
  • Reduced Element Spacing to Minimize RF Levels

The ADB-FM3 antenna features include asymmetrical bandpass and are ideal for HD Radio and analog broadcasting.

Finally, for more information, please call the Jampro team now. Alternatively, please go to the contact us to leave a message. We will get back to you as soon as possible.

Download

ABD-FM3 FM Broadcast Dipole Antenna
