Arrowhead Dipole Panel Antenna

JAHD Arrowhead Dipole Panel Antenna
Arrowhead Dipole Broadcast Panel Antenna

The Jampro JAHD Arrowhead Dipole panel antenna is excellent for TV stations. Especially those looking for stability and excellent control over axial ratio. The JAHD antenna supports Bands I, II (FM), and III. It is easily adaptable for multi-station use.

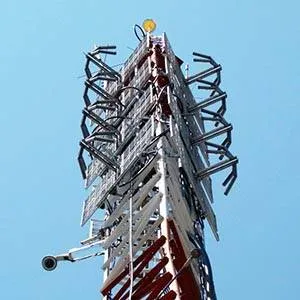

Besides, the antenna design allows mounting on the side of a large tower or large supporting structure. Also, the power rating is 10 kW per panel. However, higher powers are available. The JAHD VHF Panel Antenna is a side-mount antenna. Moreover, various azimuth and elevation patterns are configurable.

Additionally, beam tilt and null fill provide an elevation pattern shaped to maximize coverage. Circular polarization antennas deliver varying levels of vertical polarization. Results range from small amounts of elliptical polarization to complete circular polarization.

Furthermore, this panel antenna can produce a wide variety of standard and custom azimuth patterns. Moreover, it is worth noting that different configurations will make various gains, weights, and wind loads.

HD Capabilities

Furthermore, the Jampro JAHD-HD dual Input HD FM antenna system delivers 50-100 kW ERP. It provides exemplary linearity and power handling capability. HD Radio (I.B.O.C.) hybrid feeds for dipoles mounts at each antenna input. This approach allows dry air or nitrogen pressurization from the input connectors to the radiating dipoles. It also protects the antenna from damage-causing moisture invasion.

HD Radio Logo

Arrowhead Dipole Panel Antenna Features

  • FM & VHF bands I, II (FM) & III.
  • Broadband for multiple channel & frequency operations.
  • Durable & rugged construction of marine brass, stainless steel & hot-dipped galvanized steel.
  • Optional fiberglass radome protection.
  • Excellent axial ratio design.
  • HD or DTV ready.

Finally, for more information, please call the Jampro team. Alternatively, please visit the Contact us page outside regular business hours or on a national holiday. Leave a message, and we will respond to you as soon as possible.
