Low Power CPOL FM Broadcast Antenna

Low Power FM Broadcast Antenna

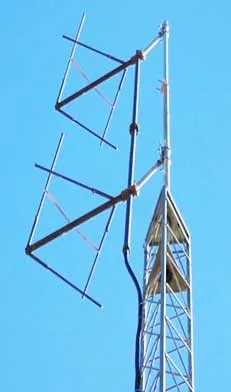

The Jampro JLPC Low Power FM Broadcast Antenna is the low-power version of the popular PENETRATOR antenna. The PENETRATOR has become an industry standard for quality and performance.

Also, each bay consists of a PENETRATOR style radiating element. Also, a galvanized steel mounting bracket supports a rigid shunt feed line.

All orders will include standard round leg mounting brackets. Moreover, silver-plated inner conductor connectors provide maximum contact life and minimum power loss.

Low Power FM Broadcast Antenna Primary Features

Outstanding performance for HD Radio, Stereo, and SCA Operation can be expected.  Also, an excellent VSWR and Bandwidth of 1.1:1 at +/- 150 kHz is typical.

Specifications

  • Reduced RF Arrays Pattern Measurement Study.
  • Custom Mounting Brackets Available Electrical Beam Tilt.
  • Null Fill.
  • Rugged Mechanical Construction Mounting.
  • True Circular Polarization Range 87.5-108 MHz.
  • DC Grounded at Each Bay for Lightning Protection.
  • Also, it includes Marine Brass & Copper for Longevity.

Please ask for assistance from the Jampro sales team when planning your station’s coverage pattern. Furthermore, don’t forget that Jampro will be able to supply all your transmission lines, components, and accessories with your order. Please mention your requirements when placing your order.

Finally, for more information, please call the Jampro team.  Alternatively, if outside of normal working hours or on a national holiday, please leave a message via the Contact us page. We will respond to you as soon as possible.
