500W UHF Mask Filter Combiner

500W UHF Mask Filter Combiner

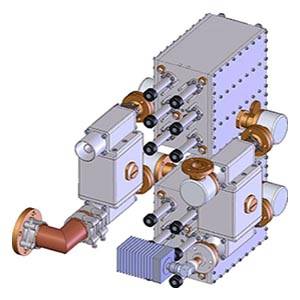

The Jampro Antennas 500W UHF Mask Filter Combiner provides Constant Impedance and outstanding performance in a compact design. Furthermore, it supports NTSC, PAL, DVB-T/T2, ISDB-T, and DTV.

The RCCC-2T1-1UM combiner module and mask filter provide excellent results. The product is for the bandpass and channel combining applications and mask filtering. Each unit is also electrically and mechanically performance tested to ensure strict adherence to Jampro’s superior level of quality. The combiner design is ideal for application size concerns are a premium consideration.

However, should you need assistance in specifying your combiner/filters needs, please call us? Our engineering team will also be able to help you out and organize a proposal for you. You may download the relevant datasheet at the bottom of this page.

500W UHF Mask Filter Combiner Specification

  • UHF 470-860 MHz
  • Up to 500W average or 1kw pk sync per channel
  • Rugged High-Quality Design
  • Constant Impedance (Balance Type)
  • Integrated DTV Mask Filtering
  • Frequency Range 470-860 MHz
  • Channel Spacing – 1 channel minimum
  • Filter Type – 6 poles/cavities, coaxial
  • VSWR <1.10:1

Finally, for more information, please call the Jampro sales team.  Alternatively, please visit our Contact us page outside regular working hours or during a national holiday. Here you may leave a message explaining your requirements. We will respond to you as soon as possible.

Download:

RCCC-2T1-1UM-Literature.pdf
