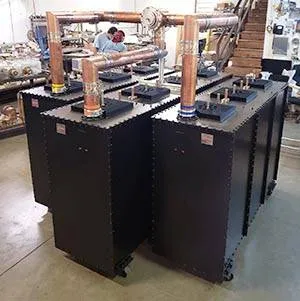

RCCS FM Starpoint Combiner
The Jampro RCCS FM Starpoint Combiner is a high-performance, cost-effective solution for combining low-to-medium-power signals.
It offers a reliable and economical method for combining two or more low-medium power signals.
Broadband Performance:
- Operates in FM (Band II)
- 3dB Bandwidth > 600 KHz
Exceptional Signal Integrity:
- Low VSWR (< 1.1:1 +/- 150 kHz) minimizes signal reflections.
- High Isolation (34 dB minimum at 1.3 MHz) prevents signal interference.
- Low Insertion Loss (< 0.48 dB) maintains signal strength.
- Various power levels are available (1 kW to 10 kW per channel).
- Customizable design to meet your specific needs.
- 50 Ohm input and output impedance for seamless integration.
- 7/8″ EIA flange input connectors.
- 1-5/8″ EIA flange output connectors.
Jampro understands that every application has unique requirements. Our experienced engineering staff will work with you to select the RCCS Starpoint Combiner system that best suits your needs.
Note: Specifications are based on a 4-frequency configuration.
Finally, please don’t hesitate to contact the factory for details on custom configurations and higher input count options.
