Side Mount FM Antennas

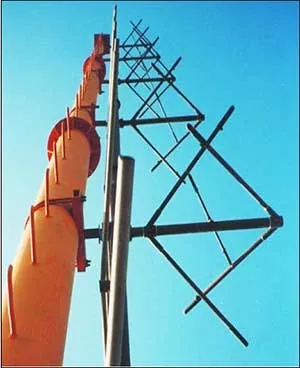

Sidemount FM Antenna

The Jampro JHPC Side mount FM Antennas is the high-power version of the “PENETRATOR” antenna. It has become an industry standard for quality and performance.

Rated at 40 kW maximum inputs, each bay consists of a PENETRATOR style radiating element. This includes a 3-1/8” shunt feed line.

Also, JHPC Antennas deliver factory tuned to the FM Band II range. (87.5 -108 MHz). Antenna range testing simulates the structure of the clients. Multiple frequency designs are also available.

Additionally, the true circular polarization of the JHPC antenna offers excellent performance for HD Radio, Stereo, and SCA operation. Typical VSWR is 1.1:1 ± 200 kHz.

In addition, the antenna construction is of high-quality marine brass and copper. Moreover, a hot-dipped galvanized steel mounting bracket for utmost grounding supports each bay. Round leg mounting brackets will provide mounting of standard face towers. Silver-plated inner conductor connectors provide maximum contact life and minimum power loss.

Also, all antennas have DC grounding at every bay for maximum lightning protection. Finally, this rugged mechanical construction and mounting ensure the long life and outstanding performance of each JHPC antenna system.

Features of the Side mount FM Antenna

  • Radome Deicers.
  • FCC Directionalization.
  • Reduced RF Arrays.
  • Pattern Measurement Study.
  • Custom Mounting Brackets Available.
  • Electrical Beam Tilt Null Fill.
  • Multiple Frequencies supported.
