8000W FM Bandpass Filter

8000W FM Bandpass Filter

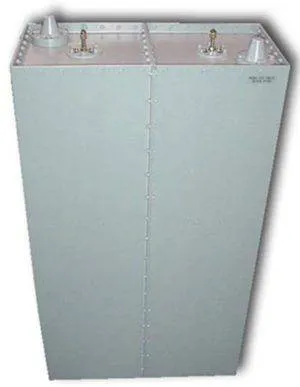

The JAMPRO 8000W FM Bandpass Filter is an FM Iris Coupled Combline band-pass filter. These designs also provide superior performance for medium power transmitter systems in a modular configuration. Moreover, 2, 3, 4, or 5 sections will be configured, assembled, tested, and shipped.

In addition, the filter provides almost any value of rejection bandwidth. Furthermore, selecting several sections and coupling iris dimensions will be required. Pass-band insertion loss minimizes with the use of 11.5” high-Q aluminum cavities. The invar tuning rods on copper center conductors assure temperature stability.

8000W FM Bandpass Filter Specification:

  • Type: 2,3,4 section.
  • Frequency: 88 – 108 MHz.
  • Power: 5 KW and 8 KW with heat sinks.
  • VSWR: 1.08:1 Max  ± 150 kHz.
  • Insertion Loss: 0.5 dB Max +/- 200 KHz.

Rejection FM Bandpass Filter (RCBC-X1X-FM) Specifications:

  • 2-Section 30 dB ± 4.0 MHz.
  • 3-Section 30 dB ± 1.6 MHz.
  • 4-Section 30 dB ± 1.0 MHz.
  • 5-Section 30 dB ± 0.7 MHz.

1-5/8” unflanged connectors will be standard. Flanged connectors are also available upon request. The design also delivers power levels of up to 5 KW. With heat-sinks provide power level support to 8kW.

Finally, for more information and pricing, please call the Jampro team. Alternatively, please leave a message via the Contact Us page. We will get back to you as soon as possible.

Download:

RCBC-X1X-FM-Literature.pdf
